LOFAM Security Camera System 8CH Home CCTV System 4 X Outdoor Night Vision Camera 960H CCTV DVR Vedio Surveillance Kit 8 Channel


SKU: 922585683 Category:

LOFAM Security Camera System 8CH Home CCTV System 4 X Outdoor Night Vision Camera 960H CCTV DVR Vedio Surveillance Kit 8 Channel

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

clarity. (HD Cable Not Included)

View on TV or PC Monitor

For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

DVR Specification:

Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Operation Interface Graphical User Interface(GUI)
Video Input / Output BNC: 8-Channel Input / 1-Channel Output
Other Video Output VGA/HDMI 1080P
Audio Input / Output Input: 4ch/ Output: 1ch
Display Resolution AHD-L 960H
Recording Frame Rate

AHD-L 960H

Record Resolution AHD-L 960H

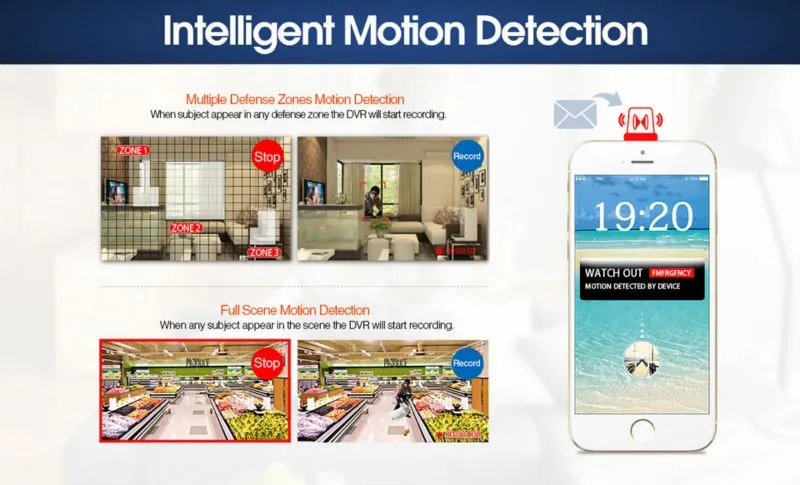

Record Mode Manual / Time Schedule / Motion Detection

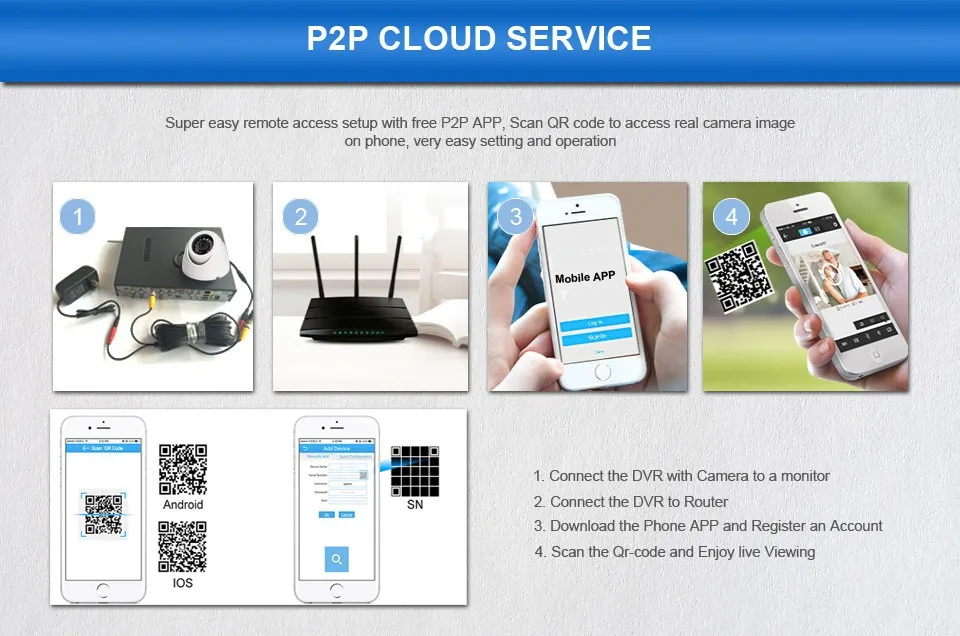

Network Function Support Live View with IE & Mobile Phone
Network RJ45, 10M/100M
Net Protocol TCP/IP, PPPoE, DHCP and DDNS
Remote Access LAN or Internet Browsing
PTZ Control RS-485
HDD Interface 500GB to 4TB ( hard drive for optional on link )
USB 2 X USB Port for Backup
Remote Control IR Remote Control
Power Supply DC12V

Camera Specification:

Image Sensor CMOS
TV System NTSC / PAL
Horizontal Resolution 800TVL
Lens 3.6mm or 6mm (default is 3.6mm)
Number of IR LEDs 24 LEDs
Infrared Illumination (Night Vision) up to 20m
Minimum Illumination 0.0 Lux
Camera Color black and white for optional (default black )
Video Output 1.0Vp-p, 75 ohms
Operating Temperature -40°C ~+50°C
Weatherproof Yes
Power 12V DC
Material Metal Body for outdoor indoor waterproof

  • 1 X 8CH AHD-L 960H Security DVR recorder
  • 4 x 800TVL Bullet Outdoor cctv cameras
  • 4 x 60feet(18.3m) video cables
  • 1 X 12V 2A Power Supply for DVR
  • 1 x 12V 2A Power supply for camera
  • 1 x 1 to 4 power spliter line
  • 1 x CD software
  • 1 X USB Mouse
  • 1 X IR Remote control(batteries not included)
  • 1 X Users Manual
  • Hard Disk for optional on product link !

Even though we offer free shipping, we do not cover any tax and duty! Buyers are responsible for local additional COD charges,VAT, Brokerage Fees, Duty, or Custom Fees and Taxes. Please leave us message on order that how much its better to declare value on invoice, thank you very much!

If your shipping address is a remote area to DHL,FEDEX,UPS or TNT, please provide a new address which is not remote area or pay extra remote area fees US$35, thanks for your cooperation !

Messages with shipping details will be sent to you after shipment. Please respond to that message to contact us for any question. Our customer service and tech support will reply your message within 24 hours and do our best to help you out.

Please read the entire product description before bidding. We cannot be held responsible if you fail to read the description. We will be more than happy to answer any and all questions promptly. Ordered item and shipping address can’t be changed after item shipped.

1 Products may be returned for refund or replacement within 30 days from the purchase date. Returned merchandise must be unused, in original packaging and include all accessories. Shipping costs are non-refundable.

2 Please contact the seller prior to any return. The seller will provide Return Merchandise Authorization (RMA) to the buyer. Any products returned to the seller without RMA will be void. Please provide the return tracking No. to faster process the refund.

3 We will employ every resource to ensure that your return is processed promptly and without hassle. Please contact us for any product or service issues before escalating to Aliexpress for solution.

Your feedback is very important to our business's development.

If you have any problems with our items or service ,just feel free to contact us firstly before you left any neutral or negative feedback, we will do our best to ensure your satisfaction .

Additional information

PCS of Camera


Brand Name


Cable Length


Model Number


DVR Recording

8ch full 960H

DVR Features

P2P Mobilephone View / HDMI 1080P

Video Output

BNC + VGA + HDMI 1080P

Camera Features

800TVL / Day Night / Outdoor Waterproof

Camera Color

black and white for optional ( default black )

Camera Lens

3.6mm and 6mm for optional ( default 3.6mm )


4ch input / 1ch output

Power supply

EU / US / AU / UK for optional




3 years
